Whirlpool Refrigerator Ice Maker Stopped Working Because of Broken Door Wires in Lowry, Denver
We were recently called to a home in Denver's Lowry neighborhood to diagnose a Whirlpool side-by-side refrigerator that had suddenly stopped making ice.
The homeowner had already ruled out simple issues, but the ice maker still wouldn't produce ice. After a thorough diagnosis, we discovered a common Whirlpool problem: broken wires inside the wiring harness at the bottom of the freezer door. Many companies recommend replacing the entire freezer door when this happens, but in many cases that expensive repair isn't necessary. We were able to restore the refrigerator by repairing the damaged wiring harness instead.
Customer Complaint
- Appliance
- Whirlpool side-by-side refrigerator
- Neighborhood
- Lowry, Denver
- Customer Complaint
- Ice maker stopped producing ice
- Refrigerator Cooling
- Normal — no temperature issues
- Diagnosis
- Broken wires in the freezer door wiring harness
- Repair
- Repaired the damaged wiring harness near the bottom door hinge
Our Diagnosis
We began by inspecting the refrigerator and checking the ice maker components. Next, we removed the lower toe grille and inspected the freezer door wiring harness near the bottom hinge.
Several wires had completely broken after years of the freezer door opening and closing. Without those electrical connections, the ice maker could no longer receive the power and signals needed to operate.
The Repair Process
Step 1 — Initial Inspection
We confirmed the customer's complaint and inspected the refrigerator before beginning disassembly.
Step 2 — Access the Wiring Harness

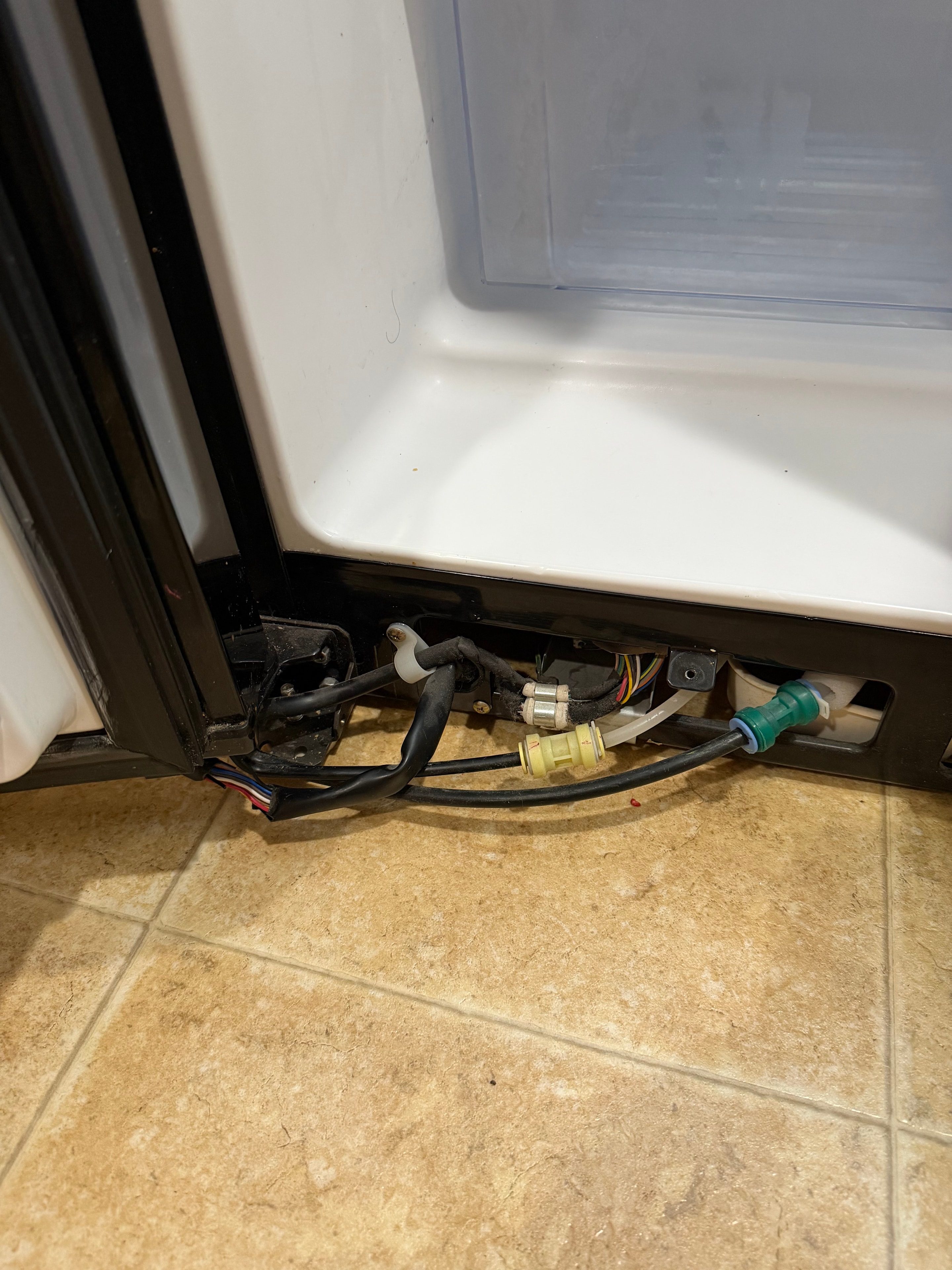

After removing the lower kick plate, we exposed the wiring harness running through the bottom of the freezer door.

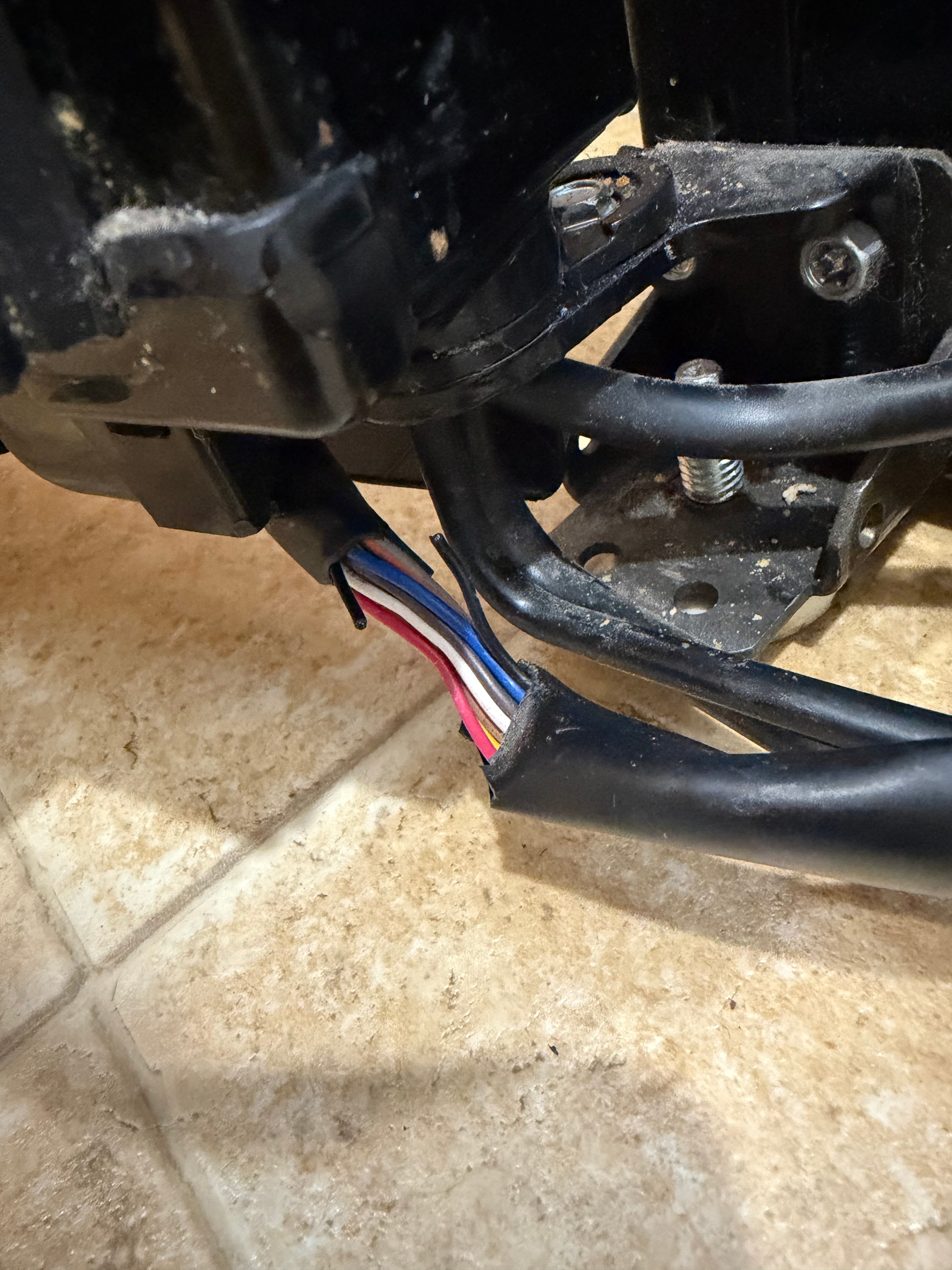

Step 3 — Find the Broken Wires
Opening the protective harness revealed several broken wires caused by years of normal door movement. This is one of the most common failures we see on Whirlpool-built side-by-side refrigerators.

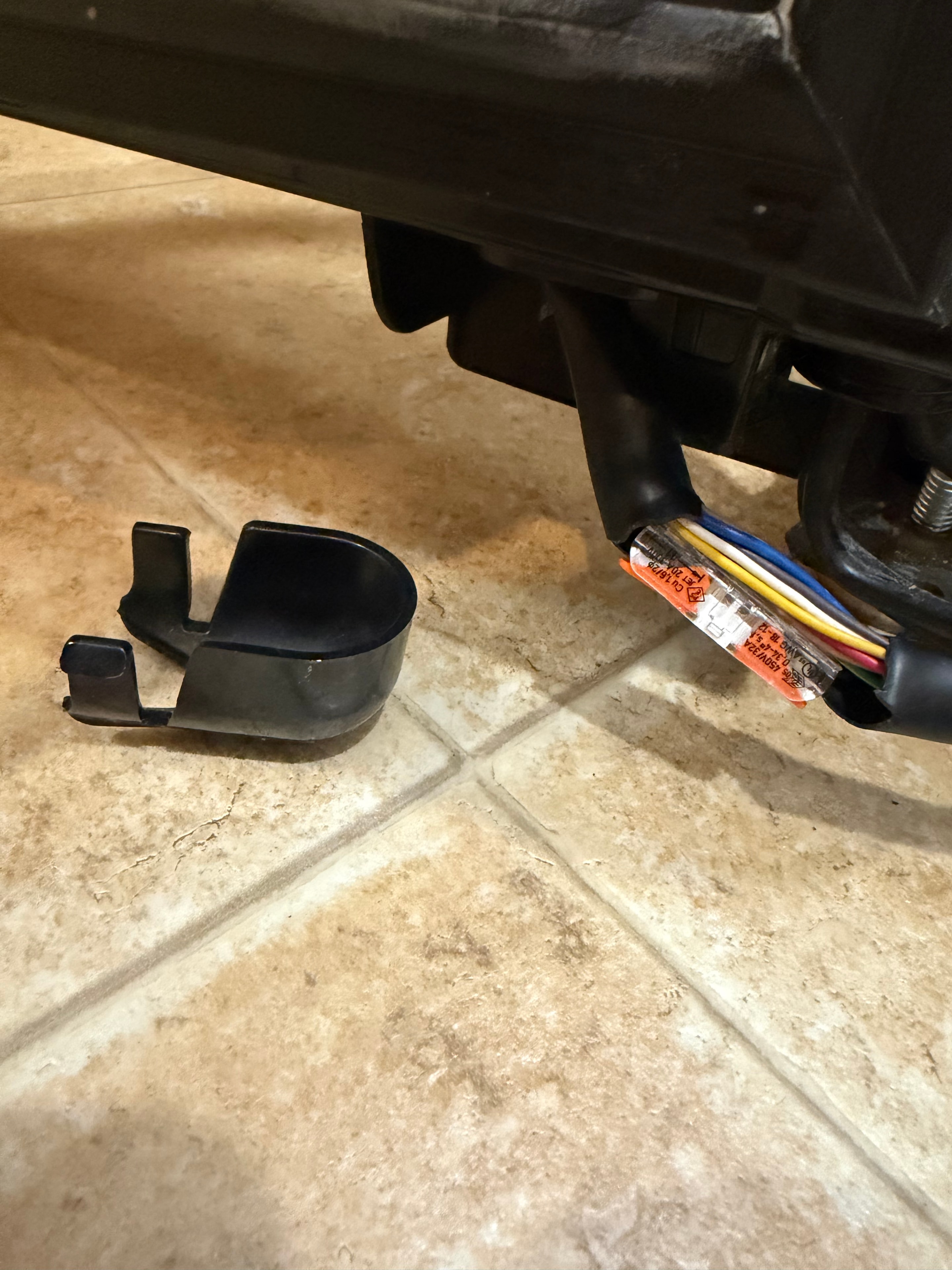

Step 4 — Repair the Wiring
Instead of recommending a costly freezer door replacement, we repaired each damaged wire using high-quality waterproof connectors and verified each circuit before closing the harness.

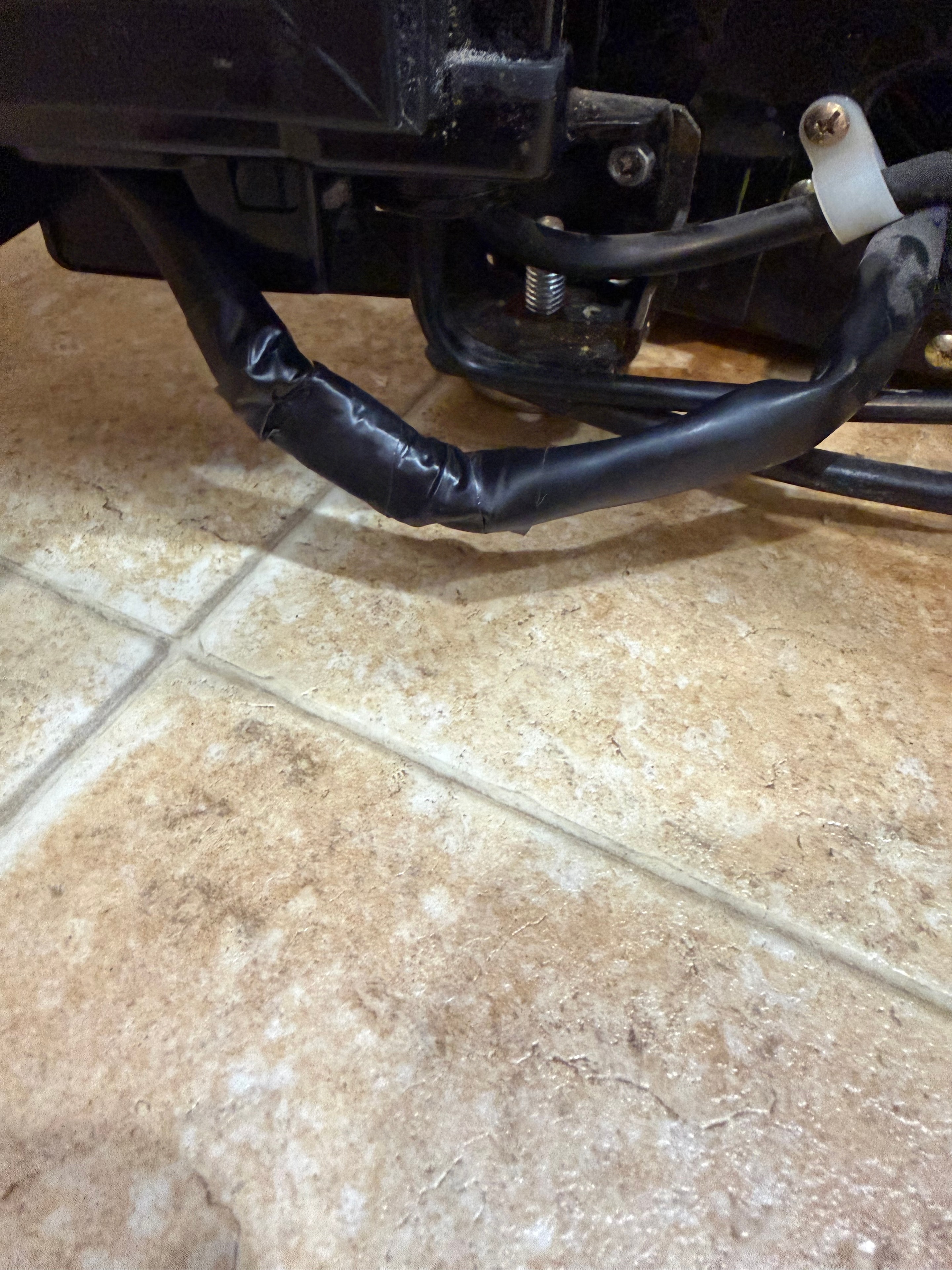

Step 5 — Protect the Harness
Once testing was complete, the wiring harness was wrapped and protected to help reduce future wear.
Step 6 — Reassemble and Test
The toe grille was reinstalled, and the refrigerator was tested to confirm the repair. The ice maker was restored to normal operation without replacing the freezer door.
Why This Happens
Every time the freezer door opens and closes, the wiring harness flexes slightly. Over thousands of cycles, the copper wires inside can fatigue and break, leading to problems such as:
- Ice maker not working.
- Water dispenser failure.
- Dispenser lights not working.
- Intermittent electrical issues in the freezer door.
Why Repair Instead of Replace?
Many homeowners are told they need a complete freezer door replacement, which can be very expensive. When the damage is limited to the wiring near the bottom hinge, a professional wire repair can often restore full operation while saving the customer a substantial amount compared to replacing the entire door assembly.
Whirlpool Refrigerator Repair in Lowry and the Denver Metro
Denver Rapid Appliance Repair proudly provides refrigerator repair throughout Lowry, Central Park, Park Hill, Aurora, and the greater Denver metro area. We regularly service Whirlpool refrigerators for issues including:
- Ice maker failures and wiring harness repairs.
- Water dispenser problems.
- Compressor and cooling issues.
- Ice maker control board failures.
- Water inlet valve replacements.
- Door seal and gasket repairs.
Repair Complete — Ice Maker Restored
Ice maker returned to full operation without replacing the freezer door. $99 service call applied toward the repair.
